Bronze Horizontal Check Valves

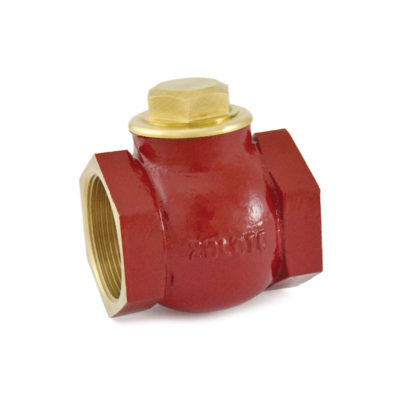

Bronze Horizontal Check Valves (Art - 1010)

• Screwed Female Ends to IS 554 / BS 21 / ISO 7.
• Screwed in Bonnet, Integral Seat.
• Permits flow in one direction and closes automatically if the flow reverses.
• Metal Disc is mushroom shaped with spherical seating surface.
• Meant for Horizontal Lines only.
• Disc is guided in Body as well as in Bonnet.
• Medium Pattern.
• Also available with metal to metal seating.

• Test Pressure (Hydrostatic):
• Shell: 20 kg/cm²g (285 psig)
• Seat: 13.5 kg/cm²g (192 psig)
• Maximum Working Temperature : 80°C
