Bronze Gate Valves

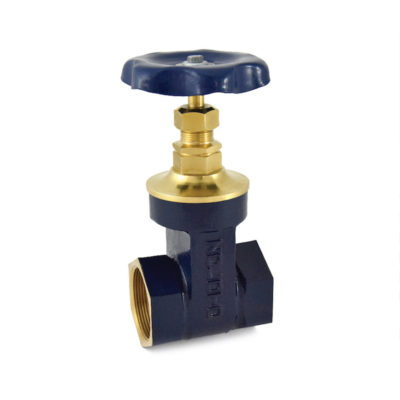

Bronze Gate Valves (Art - 1035)

• Screwed Female Ends to IS 554 / BS 21 / ISO 7.
• Screwed in Bonnet, Inside Screw, Non-Rising Stem, Integral Seat, Solid Wedge.
• Designed sheet metal handwheel for a firm grip and convenient operation.
• Premium Quality PTFE Gland Packing.
• Design Standard IS 778, Class-1.
• Provision for re-packing under pressure.

• Test Pressure (Hydrostatic):
• Shell: 1.5 MPa
• Seat & Back Seat : 1.0 MPa
• Maximum Working Temperature : 45°C
